DRL Stainless Steel Vertical Multi-stage Pump

Print Date:2024/05/20
Product
Pump Model DRL4-4
Pump Type
Pump Performance
Rated Flow 5m3/h
Rated Head 30m
Rated Speed 2900r/min
Eff. %
Shaft Seal
TYPE mechanical seal
SIZE m
MATERIAL
Liquid
Liquid Transport Water
Liquid Temperature Range -20-120℃
Liquid Temperature 20℃
Density 998.2kg/m3
Viscosity mm2/s
Solid Content %
Solid Size mm
Material
Pump body 304/316L
Casing 304/316L
Impeller 304/316L
Shaft 304/316L
BASE HT250
Other
Net Weight kg
Gross Weight kg
Transport Volume 0.08m3
PUMP kg
BASE PLATE kg
Installation
Maximum ambient temperature 40℃
Maximum operating pressure 16bar
Flange standard DIN
Pump Inlet DN32
Pump Outlet DN32
Pressure Level PN40
COUPLING
COUPLING COVER
IMPELLER
ROTATION VIEWED FROM DRIVER
Driven
End
Motor
MFG.
Motor Model 80M1-2
ENCLOSURE
R.OUTPUT
Rated Power 0.75KW
Motor Pole 2
Rated Speed 2900r/min
Frequency 50HZ
Efficiency IE4 83.5% ;IE3 80.7%
Insulation Class F
Rated Voltage φ3x380V
Rated Electric 1.7A
Motor Efficiency Level IE4、IE3
Protection Level IP55
Driven
End
ACCESSORIES
COUPL.SET
BASE PLATE
COUNT.FLANGE
PRESS.GUAGE
FUNNEL
SUC.STRAINER
Performance Curve

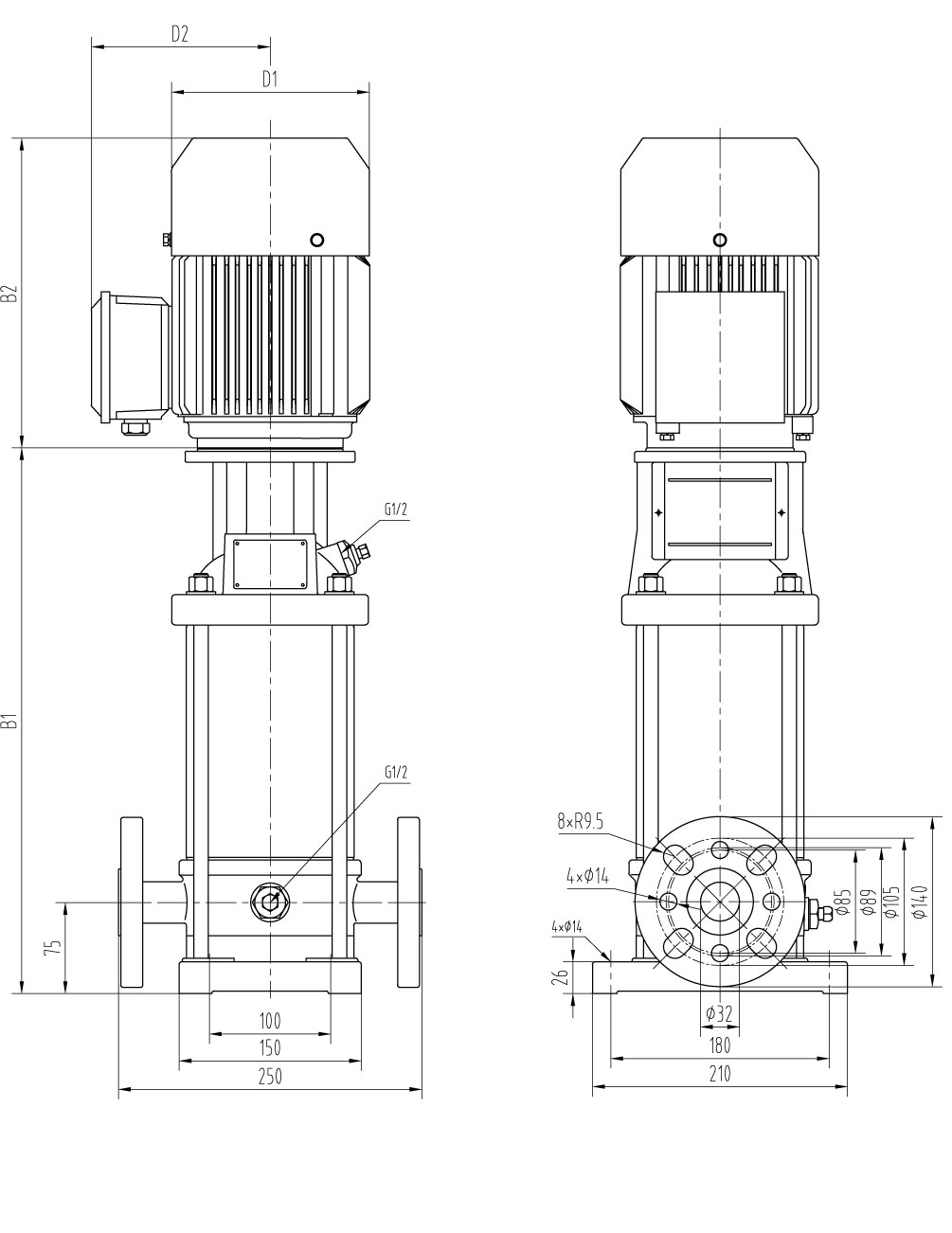

Installation Dimension Drawing
Installation Parameters
Motor Power 0.75 kW
B1 338 mm
B1+B2 593 mm
D1 175 mm
D2 150 mm
Weight 20 kg
Transportation Volume 0.08 m3
