Print Date：2024/12/05
| Product | |
| Pump Model | N747D/NSQ-4XRL15-17 |
| Pump Type | |
| Pump Performance | |
| Rated Flow | 51m3/h |
| Rated Head | 191m |
| Rated Speed | r/min |
| Eff. | % |
| Shaft Seal | |
| TYPE | |
| SIZE | m |
| MATERIAL | |
| Liquid | |
| Liquid Transport | |
| Liquid Temperature Range | -℃ |
| Liquid Temperature | ℃ |
| Density | kg/m3 |
| Viscosity | mm2/s |
| Solid Content | % |
| Solid Size | mm |
| Material | |
| Pump body | |
| Casing | |
| Impeller | |
| Shaft | |
| BASE | |
| Other | |
| Net Weight | kg |
| Gross Weight | kg |
| Transport Volume | m3 |
| PUMP | kg |
| BASE PLATE | kg |
| Installation | |
| Maximum ambient temperature | ℃ |
| Maximum operating pressure | bar |
| Flange standard | |
| Pump Inlet | |
| Pump Outlet | |
| Pressure Level | |
| COUPLING | |
| COUPLING COVER | |
| IMPELLER | |
| ROTATION VIEWED FROM DRIVER | |
| Driven | |
| End | |
| Motor | |
| MFG. | |
| Motor Model | |
| ENCLOSURE | |
| R.OUTPUT | |
| Rated Power | KW |
| Motor Pole | |
| Rated Speed | r/min |
| Frequency | HZ |
| Efficiency | |
| Insulation Class | |
| Rated Voltage | |
| Rated Electric | |
| Motor Efficiency Level | |
| Protection Level | |
| Driven | |
| End | |
| ACCESSORIES | |
| COUPL.SET | |
| BASE PLATE | |
| COUNT.FLANGE | |
| PRESS.GUAGE | |
| FUNNEL | |
| SUC.STRAINER | |
Performance Curve

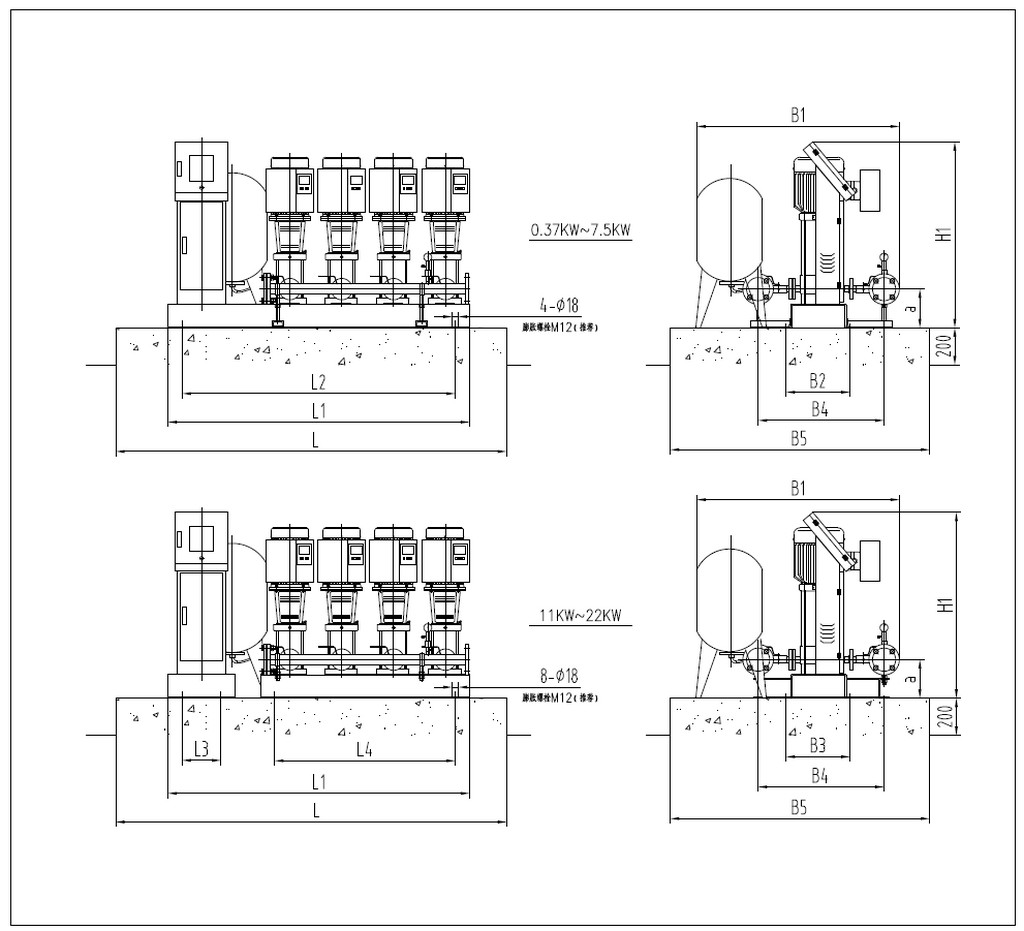

Installation Dimension Drawing
| Installation Parameters | |
| Motor Power | 15 kW |
| a | 258 mm |
| B1 | 1600 mm |
| B3 | 250 mm |
| B4 | 997 mm |
| B5 | 2000 mm |
| H1 | 1828 mm |
| L | 2700 mm |
| L1 | 2300 mm |
| L3 | 380 mm |
| L4 | 1315 mm |
| Weight | 1152 kg |
