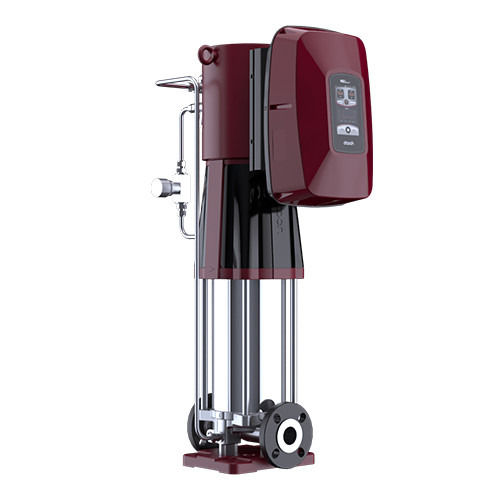

  3. XRL32/DRL32-（X）数字集成永磁静音泵

  • Flow Range：15-48(m3/h)
  • Head Range：5-269(m)
  • Power Range：1.5-30(kW)
  • Rated Speed：(r/min)
  • Inlet & Outlet：DN65
  • Inlet：DN65
  • Outlet：DN65
  • Applications：
Overview Description:

Product Model Rated Flow (m3/h) Flow Range (m3/h) Rated HeadH (m) Head Range (m) Motor Power (kW) Frequency(HZ)
Performance Curve XRL32-1-1/DRL32-1-1（X）3000rpm 30 0-40 10.5 17-5 1.5 50
Performance Curve XRL32-1/DRL32-1（X）3000rpm 30 0-40 13.8 19-8.5 2.2 50
Performance Curve XRL32-2-2/DRL32-2-2（X）3000rpm 30 0-40 21.5 32-11 3 50
Performance Curve XRL32-2/DRL32-2（X）3000rpm 30 0-40 28 38-20 4 50
Performance Curve XRL32-3-2/DRL32-3-2（X）3000rpm 30 0-40 37.5 51-22 5.5 50
Performance Curve XRL32-3/DRL32-3（X）3000rpm 30 0-40 43 56-29 5.5 50
Performance Curve XRL32-4-2/DRL32-4-2（X）3000rpm 30 0-40 53.5 70-31 7.5 50
Performance Curve XRL32-4/DRL32-4（X）3000rpm 30 0-40 59 76-40 7.5 50
Performance Curve XRL32-5-2/DRL32-5-2（X）3000rpm 30 0-40 69.5 89-45 11 50
Performance Curve XRL32-5/DRL32-5（X）3000rpm 30 0-40 75.5 95-51 11 50
