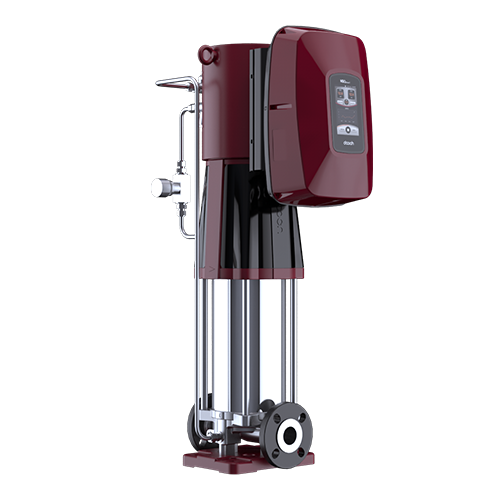

  3. XRL45/DRL45-（X）数字集成永磁静音泵

  • Flow Range：22-70(m3/h)
  • Head Range：8.5-328(m)
  • Power Range：3-45(kW)
  • Rated Speed：(r/min)
  • Inlet & Outlet：DN80
  • Inlet：DN80
  • Outlet：DN80
  • Applications：
Overview Description:

Product Model Rated Flow (m3/h) Flow Range (m3/h) Rated HeadH (m) Head Range (m) Motor Power (kW) Frequency(HZ)
Performance Curve XRL45-1-1/DRL45-1-1（X）3000rpm 45 0-58 14.9 21-8.5 3 50
Performance Curve XRL45-1/DRL45-1（X）3000rpm 45 0-58 19.5 26-13.5 4 50
Performance Curve XRL45-2-2/DRL45-2-2（X）3000rpm 45 0-58 30.8 42-18.5 5.5 50
Performance Curve XRL45-2/DRL45-2（X）3000rpm 45 0-58 38 52-29 7.5 50
Performance Curve XRL45-3-2/DRL45-3-2（X）3000rpm 45 0-58 51 67-35 11 50
Performance Curve XRL45-3/DRL45-3（X）3000rpm 45 0-58 59 77-42 11 50
Performance Curve XRL45-4-2/DRL45-4-2（X）3000rpm 45 0-58 72 93.8-50 15 50
Performance Curve XRL45-4/DRL45-4（X）3000rpm 45 0-58 79 102-59 15 50
Performance Curve XRL45-5-2/DRL45-5-2（X）3000rpm 45 0-58 92 118-68 18.5 50
Performance Curve XRL45-5/DRL45-5（X）3000rpm 45 0-58 100 128-72 18.5 50
