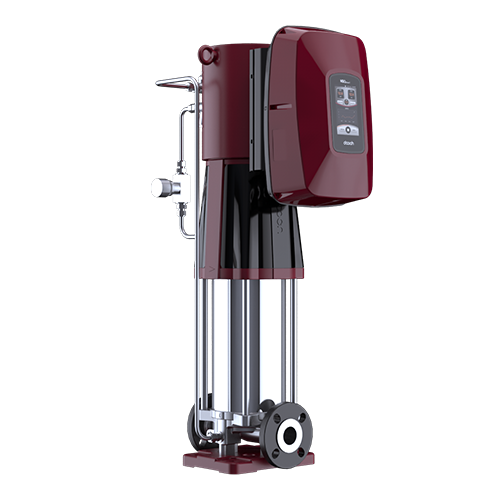

  3. XRL64/DRL64-（X）数字集成永磁静音泵

  • Flow Range：30-100(m3/h)
  • Head Range：5-222(m)
  • Power Range：4-45(kW)
  • Rated Speed：(r/min)
  • Inlet & Outlet：DN100
  • Inlet：DN100
  • Outlet：DN100
  • Applications：
Overview Description:

Product Model Rated Flow (m3/h) Flow Range (m3/h) Rated HeadH (m) Head Range (m) Motor Power (kW) Frequency(HZ)
Performance Curve XRL64-1-1/DRL64-1-1（X）3000rpm 64 0-85 14 22-5 4 50
Performance Curve XRL64-1/DRL64-1（X）3000rpm 64 0-85 21 32-15 5.5 50
Performance Curve XRL64-2-2/DRL64-2-2（X）3000rpm 64 0-85 29 40-15 7.5 50
Performance Curve XRL64-2-1/DRL64-2-2（X）3000rpm 64 0-85 37 51-25 11 50
Performance Curve XRL64-2-1/DRL64-2-1（X）3000rpm 64 0-85 37 51-25 11 50
Performance Curve XRL64-2/DRL64-2（X）3000rpm 64 0-85 44 60-33 11 50
Performance Curve XRL64-3-2/DRL64-3-2（X）3000rpm 64 0-85 52 70-34 15 50
Performance Curve XRL64-3-1/DRL64-3-1（X）3000rpm 64 0-85 60 80-42 15 50
Performance Curve XRL64-3/DRL64-3（X）3000rpm 64 0-85 67 90-51 18.5 50
Performance Curve XRL64-4-2/DRL64-4-2（X）3000rpm 64 0-85 75 98-52 18.5 50
