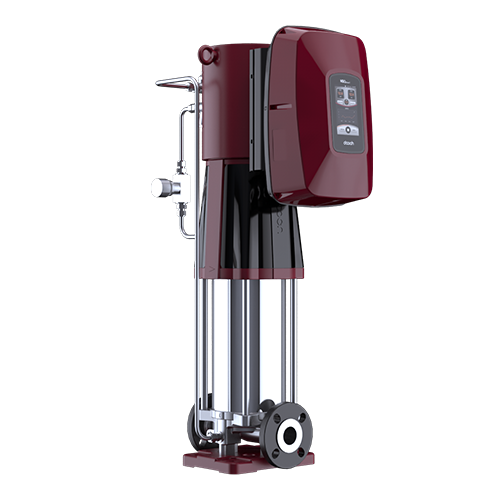

  3. XRL95/DRL95-（X）数字集成永磁静音泵

  • Flow Range：47-148(m3/h)
  • Head Range：7-223(m)
  • Power Range：5.5-55(kW)
  • Rated Speed：(r/min)
  • Inlet & Outlet：DN100
  • Inlet：DN100
  • Outlet：DN100
  • Applications：
Overview Description:

Product Model Rated Flow (m3/h) Flow Range (m3/h) Rated HeadH (m) Head Range (m) Motor Power (kW) Frequency(HZ)
Performance Curve XRL95-1-1/DRL95-1-1（X）3000rpm 95 0-124 15 24-9 5.5 50
Performance Curve XRL95-1/DRL95-1（X）3000rpm 95 0-124 22 30-15 7.5 50
Performance Curve XRL95-2-2/DRL95-2-2（X）3000rpm 95 0-124 32 45-14 11 50
Performance Curve XRL95-2/DRL95-2（X）3000rpm 95 0-124 46 62-30 15 50
Performance Curve XRL95-3-2/DRL95-3-2（X）3000rpm 95 0-124 54 78-27 18.5 50
Performance Curve XRL95-3/DRL95-3（X）3000rpm 95 0-124 69 92-45 22 50
Performance Curve XRL95-4/DRL95-4（X）3000rpm 95 0-124 94 124-59 30 50
Performance Curve XRL95-5/DRL95-5（X）3000rpm 95 0-124 116 154-74 37 50
Performance Curve XRL95-6/DRL95-6（X）3000rpm 95 0-124 140 186-90 45 50
Performance Curve XRL95-7/DRL95-7（X）3000rpm 95 0-124 166 217-107 55 50
