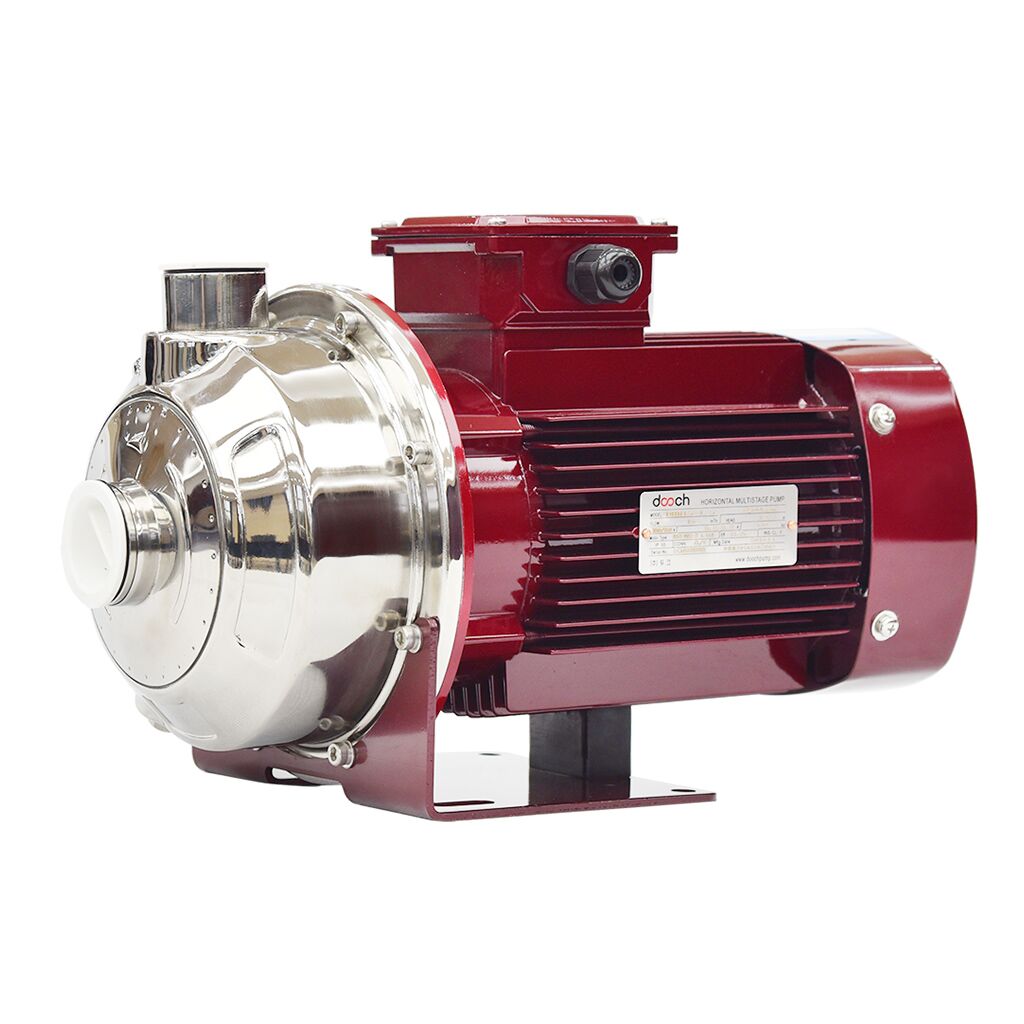

DHM Stainless Steel Horizontal Single-stage Pump

Flow Range：1.2-27(m³/h)
Head Range：11-29(m)
Power Range：0.37-2.2(kW)
Inlet & Outlet Range：G1 1/4-G2
Rated Speed：(r/min)
Applications：Pressurization and pumping of small industrial,agricultural irrigation system water treatment system,water circulating system,Liquid temperature -10 ° C ~ +85 ° C,Maximum ambient temperature +40 ° C

Overview Description:

DHM is a stainless steel horizontal single-stage pump,it has axial water absorption and radial drainage,compact structure and beautiful appearance.The pump is directly connected to the motor, coaxially mounted, with threaded inlet and outlet, convenient connection and light weight.The main components are made of sheet metal stamping parts, resistant to light corrosion, and the water contact parts are made of AISI304 or AISI316 stainless steel.

DHM4

DHM6

DHM10

DHM15

DHM20
