DRL5-25


  • Rated Flow:6(m3/h)
  • Rated Head:126(m)
  • Motor Power:4(kW)
  • Rated Speed:2900(r/min)
  • Inlet & Outlet:DN32
  • Applications: Water supply system,boiler water feed system,fire fighting system,washing system, Hot and cold water circulation system, Fire sprinkling system
Overview Description:

Water supply system,boiler water feed system,fire fighting system,washing system, Hot and cold water circulation system, Fire sprinkling system

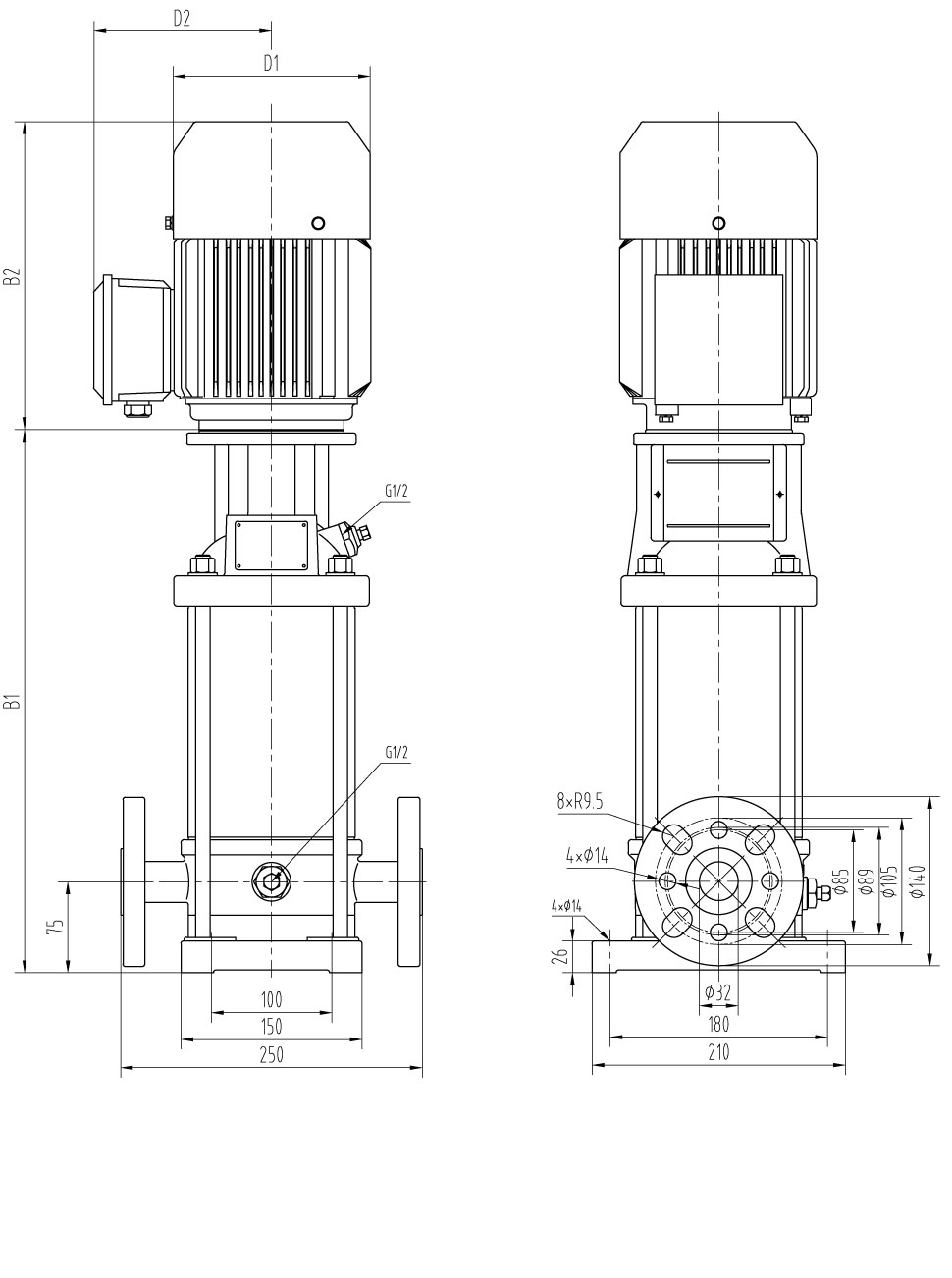

DRL5-25(Motor Power4kW)
Motor Power 4 kW
B1 928.5 mm
B1+B2 1268.5 mm
D1 220 mm
D2 195 mm
Weight 62 kg
Transportation Volume 0.15 m3
