N747D/NSQ-4XRL32-1
- Rated Flow：120(m3/h)
- Rated Head：13.8(m)
- Motor Power：2.2(kW)
- Rated Speed：(r/min)
- Applications：
N747D/NSQ-4XRL32-1(Motor Power2.2kW)

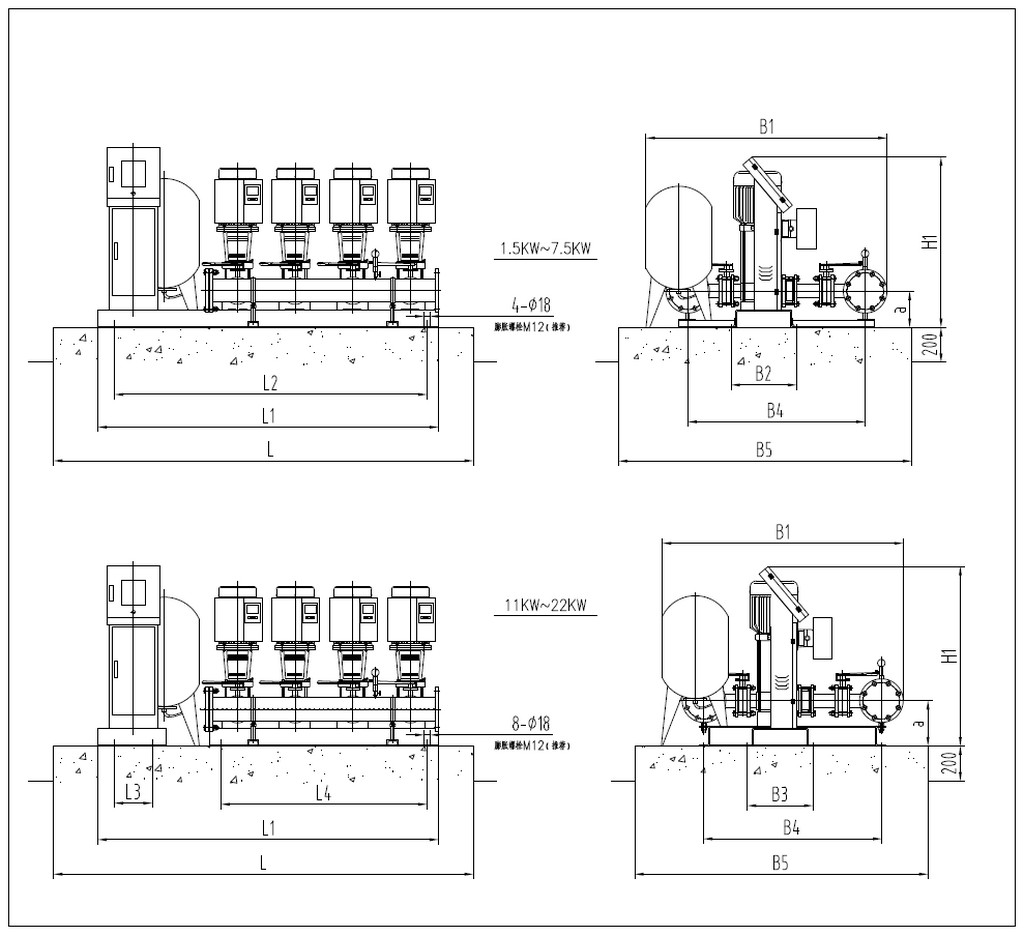

| Motor Power |
2.2 kW |
| a |
210 mm |
| B1 |
1800 mm |
| B2 |
350 mm |
| B4 |
1167 mm |
| B5 |
2200 mm |
| H1 |
1270 mm |
| L |
2600 mm |
| L1 |
2200 mm |
| L2 |
1760 mm |
| Weight |
652 kg |
