XRL64-2/DRL64-2(X)


  • Rated Flow:64(m3/h)
  • Rated Head:44(m)
  • Motor Power:11(kW)
  • Rated Speed:2900(r/min)
  • Inlet & Outlet:DN100
  • Applications: Application:Water supply system,boiler water feed system,fire fighting system,washing system, Hot and cold water circulation system, Fire sprinkling system
Overview Description:

Application:Water supply system,boiler water feed system,fire fighting system,washing system, Hot and cold water circulation system, Fire sprinkling system

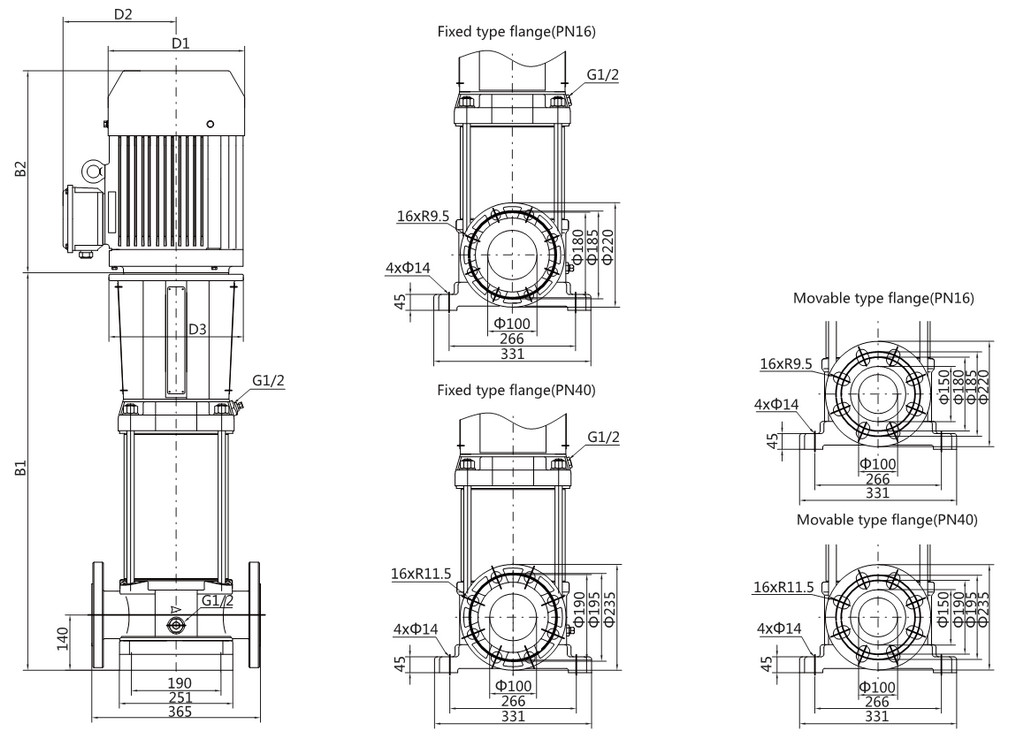

XRL64-2/DRL64-2(X)(Motor Power11kW)
Motor Power 11 kW
B1 744 mm
B1+B2 1215 mm
D1 314 mm
D2 204 mm
D3 350 mm
Weight 163 kg
Transportation Volume 0.45 m3
