DHF pump is used for water supply systems, circulation systems, liquid pressurization for industrial systems;Horizontal multi-stage non-self-priming pump,with long shaft motor all water contact parts are made of stainless steel;Low noise,small vibration due to the simple structure and high balance accuracy of the rotor components.It adopts mechanical seal to ensure no leakage, standardized design and good equipment versatility

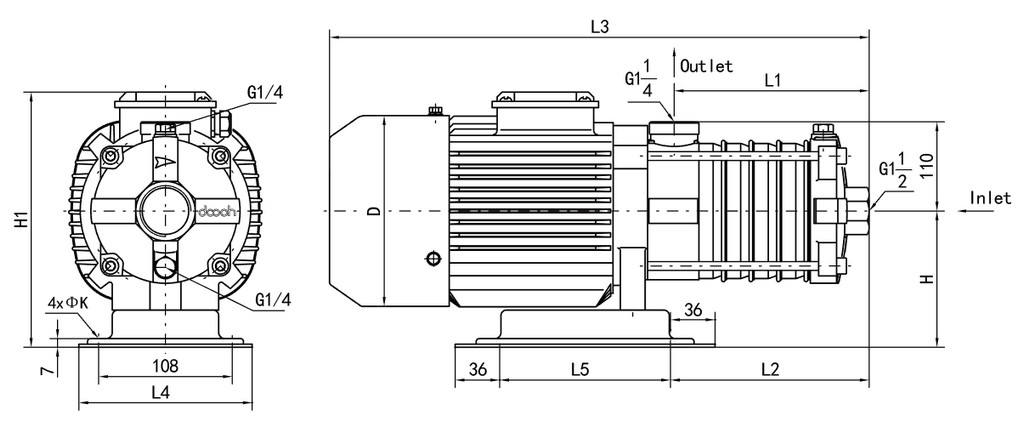

Motor Power | 2.2 kW |
D | 171 mm |
H | 118 mm |
H1 | 255 mm |
K | 9 |
L1 | 196 mm |
L2 | 214 mm |
L3 | 504 mm |
L4 | 108 mm |
L5 | 138 mm |
Weight | 30 kg |
Transportation Volume | 0.04 m3 |
